High Speed 56.3mm Ultra Long Stroke Cylindrical Voice Coil Motor For Large-Scan Optics
| Herkunftsort | Jiangsu, China |
|---|---|
| Markenname | SUPT |
| Zertifizierung | ISO9001-2000,CE |
| Modellnummer | VCAR0087-0563-00A |
| Min Bestellmenge | ≥1 |
| Preis | $120.00/pieces |
| Verpackung Informationen | Kartonverpackungen usw. |
| Lieferzeit | Allgemeine Lieferung 5-7 Tage, schnelle 3-5 Tage, Massengut zu verhandeln |
| Zahlungsbedingungen | T/T |
| Versorgungsmaterial-Fähigkeit | Verhandelbar |
Produktdetails
| Garantie | 3 Monate-1 Jahr | Typ | Zylindermotor |
|---|---|---|---|
| Drehmoment | Anträge | Konstruktion | Permanentmagnet |
| Produktmodell | VCAR0087-0563-00A | Schutzfunktion | Völlig eingeschlossen |
| Geschwindigkeit (U / min) | Hohe Geschwindigkeit | Höchstkraft ((N) | 87 |
| Maximaler Fahrtraum ((mm) | 56,3 | Wechselstrommotor ((V) | 63,4 |
| Gewicht des Rotors ((kg) | 177 | Ständerdurchmesser (Millimeter) | 72 |
| Kontinuierliche Kraft ((N) | 17,5 | ||
| Hervorheben | 56.3mm long stroke voice coil motor,high speed cylindrical VCM,large-scan optics voice coil motor |
||
Produkt-Beschreibung
Product Description

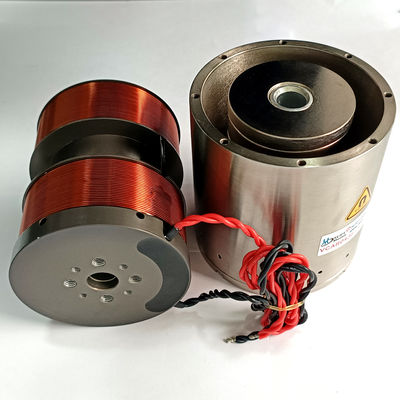

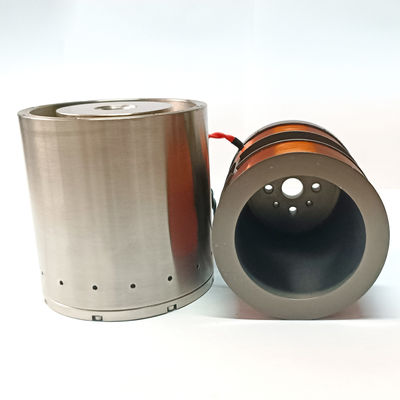

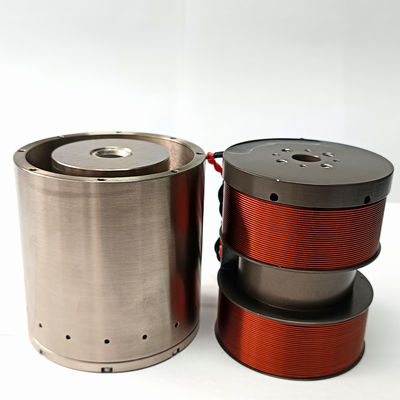

The SUPT MOTION VCAR0087-0563-00A is an ultra-long-stroke cylindrical voice coil motor with a peak thrust of 87 N and a total stroke of 56.3 mm. This voice coil motor is specifically designed for large-scan optical systems, long-stroke precision positioning, and metrology equipment requiring long-distance linear motion without mechanical transmission.
This voice coil motor delivers a continuous thrust of 17.5 N at 25°C, meeting the demands of sustained scanning. With a back-EMF constant of 8.1 V/m/s, it provides moderate speed feedback. The moving coil weighs 177 g, and the motor operates at a maximum voltage of 63.4 V. With overall dimensions of a 72 mm stator diameter and 110 mm length, it is suitable for integration into large optical stages or scanning platforms.
Long-distance, smooth, and precise linear motion is critical in optical delay lines for Fourier transform infrared (FTIR) spectrometers or terahertz imaging. This voice coil motor features a direct-drive, gearless design, ensuring that no scanning artifacts are introduced due to mechanical backlash or friction. The 56.3 mm stroke enables significant changes in optical path length.
This cylindrical voice coil motor is also well-suited for large-scale 3D scanning or coordinate measuring machine (CMM) applications, where probes must travel long distances while maintaining precision. Compared to ball screws or belt drives, voice coil motors eliminate wear and backlash, thereby improving long-term calibration stability.
Specifications:
Peak Force: 87 N
Continuous Force @25℃: 17.5 N
Total Stroke: 56.3 mm
Max Voltage: 63.4 V
Back EMF Constant: 8.1 V/m/s
Coil Weight: 177 g
Stator Diameter: 72 mm
Length: 110 mm
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter (mm) | The Length (mm) |
| VCAR0001-0064-00A | 0.88 | 0.28 | 6.4 | 6.9 | 0.29 | 3 | 9.5 | 17.7 |
| VCAR0001-0010-00A | 0.73 | 0.42 | 1 | 4.8 | 0.6 | 2.7 | 24 | 11.2 |
| VCAR00025-0127-00A | 2.55 | 0.81 | 12.7 | 11.6 | 0.77 | .6.6 | 12.7 | 24 |
| VCAR0006-0039-00A | 6.2 | 1.9 | 3.9 | 6.6 | 1.12 | 7.9 | 20 | 17.2 |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 15.7 | 3.57 | 8.2 | 25 | 18.2 |
| VCAR0007-0040-00A | 7.2 | 2.4 | 4 | 7.5 | 1.88 | 7 | 14.2 | 23 |
| VCAR0007-0064-00A | 7.8 | 2.5 | 6.4 | 9.9 | 1.5 | 7.2 | 19.1 | 23.8 |
| VCAR0007-0127-00A | 7.1 | 2.3 | 12.7 | 12.8 | 1.6 | 11.4 | 19.1 | 27 |
| VCAR0011-0050-00A | 11.4 | 2.1 | 5 | 11.8 | 3 | 11.2 | 24 | 17.2 |
| VCAR0011-0100-00A | 10.5 | 2.9 | 10 | 43.8 | 3.5 | 20 | 31 | 26.8 |
| VCAR0013-0030-00A | 13 | 3.5 | 3 | 16 | 3.5 | 12 | 25 | 21 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | 24.7 |
| VCAR0014-0250-00A | 14 | 4.5 | 25 | 26.5 | 3.9 | 35 | 25.4 | 44.2 |
| VCAR0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | 25.6 |
| VCAR0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | 35 |
| VCAR0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | 75.7 |
| VCAR0025-0630-00A | 25.3 | 8 | 63 | 50.6 | 5 | 68 | 31.8 | 83.1 |
| VCAR0030-0150-00A | 29.4 | 4.73 | 15 | 40.5 | 7.4 | 27 | 30 | 31 |
| VCAR0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | 41.7 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | 26.7 |
| VCAR0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | 72 |
| VCAR0035-0090-00A | 35 | 11 | 9 | 26.4 | 9 | 33 | 25.4 | 44.3 |
| VCAR0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | 67 |
| VCAR0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | 21.2 |
| VCAR0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | 22 |
| VCAR0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | 35.9 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | 51.3 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | 53.7 |
| VCAR0075-0200-00A | 75 | 30 | 20 | 26.2 | 15.2 | 65 | 70 | 38.7 |
| VCAR0080-0129-00A | 80 | 35 | 12.9 | 27.7 | 18 | 149 | 49 | 53.8 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | 34.9 |
| VCAR0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | 110 |
| VCAR0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | 40.4 |
| VCAR0110-0380-00A | 110 | 37.4 | 38 | 23.2 | 9 | 150 | 60.4 | 60.4 |
| VCAR0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | 27.5 |
| VCAR0115-0065-00A | 115 | 30.1 | 6.5 | 35 | 17.3 | 52 | 40 | 58 |
| VCAR0130-0310-00A | 130 | 40 | 31 | 30.4 | 20.5 | 280 | 75.6 | 56.5 |
| VCAR0140-0150-00A | 140 | 42.2 | 15 | 33.4 | 26.6 | 80 | 53 | 53.7 |
| VCAR0210-0254-00A | 210 | 66.2 | 25.4 | 56.6 | 28 | 230 | 43.7 | 111.8 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | 64 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | 109.1 |
| VCAR0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | 136.9 |
| VCAR0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | 91 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | 110 |
| VCAR0436-0373-00A | 436 | 142.6 | 37.3 | 38 | 29.8 | 1050 | 76 | 163 |
| VCAR0980-0249-00A | 980 | 605 | 24.9 | 41.5 | 104 | 1426 | 126 | 134.5 |
| VCAR1351-0310-00A | 1351 | 376.8 | 31 | 73.5 | 68 | 1071 | 110 | 143.7 |
Applications:
1.FTIR spectrometer scanning
2.Terahertz optical delay lines
3.Large-format 3D scanning
4.Coordinate measuring machines (CMM)
5.Long-travel precision positioning
